Abstract

This tutorial describes the steps to follow when building a BALTIK application on top of the TRUST software.

To this end, a convection-diffusion equation is chosen as a working example of a mathematical problem to solve. In this equation, the convection velocity and the diffusion coefficient are user-provided inputs.

The development specifications are described and some recommendations are given for solving this convection-diffusion equation. The developments are then carried out within an environment provided by the TRUST software called a BALTIK application, whose setup is also described.

Finally, two verification and non-regression tests are performed using the tools provided by the TRUST software (genererCourbes, make check_optim).

Introduction

This tutorial aims to describe the steps to follow when building a BALTIK application on top of the TRUST software. To this end, the following convection-diffusion equation is chosen as a working example:

\[\frac{\partial c}{\partial t}+\nabla\cdot(\overrightarrow{V}c)+\nabla\cdot(D\nabla c)=0 \quad \textrm{on } \Omega=[a,b]\times[c,d] \]

with periodic boundary conditions, where:

$c(\overrightarrow{X},t)$: quantity of interest (species concentration, temperature, ...),
$\overrightarrow{V}(\overrightarrow{X},t)$: convection velocity of $c$ (user input),
$D(\overrightarrow{X},t)$: diffusion coefficient of $c$ (user input),
$a$, $b$, $c$ and $d$: bounds of the two-dimensional computational domain.

The spatial and temporal discretization of the convection-diffusion equation will be performed using the numerical schemes available in the TRUST software.

In the Specification section, we describe the development specifications and give some recommendations for solving this equation.

The developments specified in the Specification section are described in the Developments section. These developments will be carried out within a BALTIK application environment, whose setup is also described in that section.

The Development Verification Process section is dedicated to two verification and non-regression tests using the tools provided by the TRUST software (genererCourbes, make check_optim).

Specification

Concepts

Problem concept: the role of a problem is to solve, over a domain, the equations that make up the problem. A time discretization scheme and a space discretization scheme are associated with it.
Equation concept: the role of an equation is to compute one or more fields given the following choices:
- a time discretization scheme,
- a space discretization scheme,
- boundary conditions,
- source terms and operators.
An equation is carried by a problem and holds a back-reference to the problem that owns it.
Operator concept: operators are parts of an equation. Among the most commonly used operators are the convection and diffusion operators.
Medium concept: description of the fluid or solid medium being modelled. The medium is defined within the problem and is accessible to the equations. The properties that characterise the medium include:
- density,
- diffusivity,
- thermal conductivity,
- heat capacity,
- variation of density with temperature (thermal expansion).

In our case, the problem to be solved contains a single convection-diffusion equation composed of:

an unsteady term $\frac{\partial c}{\partial t}$,
a convection operator $\nabla\cdot(\overrightarrow{V}c)$,
a diffusion operator $\nabla\cdot(D\nabla c)$,
a source or sink term $f=0$.

Input Data File — Requirements Analysis

When developing applications based on the TRUST software, it is recommended to start the specification by writing the input data file. This recommendation stems from the fact that the keywords in the TRUST input data file correspond to C++ objects (classes). Starting from the data file thus serves, on one hand, to adopt a user perspective and, on the other hand, to identify the objects (problem, equation(s), ...) that need to be specified and developed.

The parts of the input data file specific to our problem are described below.

Problem declaration

This new problem will be named Probleme_Convection_Diffusion.

Convection-diffusion equation declaration

This new equation will be named Convection_Diffusion. It is composed of two operators (convection and diffusion), initial conditions, and boundary conditions.

User inputs

For the convection-diffusion equation, the convection velocity $\overrightarrow{V}(\overrightarrow{X},t)$ and the diffusion coefficient $D(\overrightarrow{X},t)$ are provided by the user. In TRUST development practice, these parameters must be associated with an object (equation, problem, ...) in the data file. They will be named coefficient_diffusion and vitesse_convection.

Post-processing

It is useful to post-process the quantity of interest $c$, the convection velocity $\overrightarrow{V}(\overrightarrow{X},t)$, and the diffusion coefficient $D(\overrightarrow{X},t)$. The post-processing block for these variables takes the following form:

TRUST Built-in Features

It is strongly recommended to make maximum use of the existing features in the TRUST software and to avoid duplicating code. This minimises development time on one hand, and allows the application to benefit from the test coverage of the TRUST software on the other.

Features can be identified through the Doxygen documentation of the TRUST software. We carry out this identification exercise below with respect to our requirements described in the Input Data File — Requirements Analysis section.

Problem

By examining the Doxygen graph of the Probleme_base class (figure below), no existing problem appears close enough to our needs.

`Probleme_base` class

Convection-diffusion equation

By examining the Doxygen graph of the Equation_base class, we find that a convection-diffusion equation named Convection_Diffusion_std exists. It is a base class for the transport equation of a scalar in laminar flow and holds a reference to the convecting velocity field. This equation class is pure abstract and therefore cannot be instantiated. Its implementation is incomplete and serves as a base for other derived classes.

Based on the Doxygen graph of the Convection_Diffusion_Concentration class (figure below), the child class Convection_Diffusion_Concentration, derived from Convection_Diffusion_std, appears very close to the convection-diffusion equation. This class is a specific case of Convection_Diffusion_std for the transport of one or more constituents.

The specificities of the Convection_Diffusion_Concentration equation are:

diffusion coefficient: this coefficient is a property of a constituent associated with the equation. It is provided by the user in the data file as follows:
convection velocity: this velocity is obtained via the vitesse_pour_transport method, which retrieves it from the equation of the problem that owns it. In standard TRUST usage, this convection velocity comes from the Navier-Stokes hydraulics equation.

Application-Specific Features

The analysis of the TRUST software features in the previous section identified a Convection_Diffusion_Concentration equation that is very close to the convection-diffusion equation, with a user-supplied diffusion coefficient provided through a constituent. We therefore choose to use this equation as a base to develop a new equation named Convection_Diffusion, and associate with it a new constituent Constituant_Avec_Vitesse derived from the existing one, extended with a convection velocity property.

The new constituent class Constituant_Avec_Vitesse will be declared in the data file as follows:

Developments

Development Environment: BALTIK Application

A BALTIK application development environment is available for applications built on top of either the TRUST software, its numerical kernel ("Kernel"), or another BALTIK application. This environment handles the compilation of such applications (application-specific sources) as well as modified and/or added TRUST sources. In this framework, an application consists of:

the numerical "Kernel", the TRUST software, or another BALTIK application,
the application-specific sources.

In practice, the application-specific sources are gathered in a working directory called src, which is compiled following the standard TRUST compilation process. Sources from the "Kernel" or from TRUST that need to be modified from their standard versions can also be included.

Creating and Configuring the BALTIK Application

Creating a BALTIK application consists in creating a directory named after the application (e.g. convection_diffusion).

mkdir convection_diffusion

Setting up a BALTIK application involves creating a configuration file project.cfg inside the convection_diffusion directory.

Note: In this configuration file, only the application name is mandatory. A number of optional parameters also exist, such as the author name and the name of the executable to generate.

To configure our BALTIK application, the following steps must be executed:

initialise the source directory:

cd convection_diffusion

mkdir src

src is the directory containing either modified TRUST or Kernel TRUST sources, or additional sources specific to our application.
configure the BALTIK application:

source $TRUST_ROOT/env_TRUST.sh

cd convection_diffusion

baltik_build_configure

The $TRUST_ROOT environment variable is the path where the TRUST software is installed. The first instruction initialises the TRUST environment. The second generates a configure file and must be run from the convection_diffusion directory.

Compiling the BALTIK Application

The Makefile is generated by running the following instruction from the convection_diffusion directory:

cd convection_diffusion

./configure

Note: When new sources are added to the src directory, this instruction must be re-run to update the Makefile.

Once the Makefile has been generated, two compilation modes are available:

debug mode:

cd convection_diffusion

make debug
optimised mode:

cd convection_diffusion

make optim

Constituent Class Constituant_Avec_Vitesse

As specified in the Specification section, the user parameters for convection velocity and diffusion coefficient are assigned to the new constituent class Constituant_Avec_Vitesse, which inherits from the Constituant class of the TRUST software. The distinguishing feature of this new class is that it holds a convection velocity field.

Handling this additional attribute requires the following actions:

adding attributes:
- C: will hold the content of vitesse_convection from the data file.
- vitesse_transport: will hold the discretised convection velocity.
overriding the following methods (only the features specific to Constituant_Avec_Vitesse are described here):
- initialiser: evaluate the convection velocity in space at the initial time.
- set_param: assign the content of vitesse_convection from the data file to the attribute C.
- mettre_a_jour: evaluate the convection velocity in space at the current time.
- discretiser: discretise the convection velocity from the user-provided expression.
developing new methods:
- vit_convection_constituant: returns the attribute holding the non-discretised convection velocity.
- vitesse_pour_transport: returns the convection velocity discretised on the mesh faces.
developing the printOn and readOn methods: the Constituant_Avec_Vitesse class can be used in the data file and is therefore instantiable. To declare this type of class, the Declare_instanciable macro is used. This macro declares the signatures of the printOn and readOn methods, which are needed for reading objects from input streams (data file) and writing objects to output streams.

Header File

Source File

In the source file, the Implemente_instanciable macro serves, on one hand, to define the keyword used in the data file to represent the Constituant_Avec_Vitesse class, and on the other hand, to declare its parent class. In our case, the class name Constituant_Avec_Vitesse is chosen as the keyword in the data file.

Equation Class Convection_Diffusion

The distinguishing feature of this new equation class Convection_Diffusion compared to the base class Convection_Diffusion_Concentration is that Convection_Diffusion holds a reference to the new constituent class Constituant_Avec_Vitesse, and the convection velocity is provided by that class rather than by the resolution of a Navier-Stokes hydraulics equation.

Handling this new reference requires the following actions:

adding the reference le_constituant. To do so, the file TRUST_Ref.h must be included and our attribute added as a reference REF(Constituant_Avec_Vitesse). This non-standard C++ technique is used in the TRUST software to prevent developers from manipulating pointers, which can be a source of memory leaks.
overriding the following methods (only the features specific to Convection_Diffusion are described here):
- associer_milieu_base: associates the medium with the convection-diffusion equation, and more precisely associates the new constituent Constituant_Avec_Vitesse with the equation.
- associer_constituant: associates the constituent with the Convection_Diffusion equation. This method is called by associer_milieu_base.
- lire_motcle_non_standard: reads non-standard keywords from the data file, such as convection, in order to associate the convection velocity with the equation.
developing the printOn and readOn methods.

Header File

Source File

Problem Class Probleme_Convection_Diffusion

In the Specification section, no existing problem was identified as a suitable base for the new Probleme_Convection_Diffusion problem. We therefore take the pure abstract class Probleme_base as the parent class.

To use this new problem class, the following steps are required:

adding the attribute eq_conv_diff, which represents the convection-diffusion equation.
completing the implementation of Probleme_base by developing the following methods:
- nombre_d_equations: returns the number of equations that make up this problem (one in our case).
- equation: returns the attribute holding the convection-diffusion equation (eq_conv_diff).
overriding the method associer_milieu_base to associate the medium with eq_conv_diff.
developing the printOn and readOn methods.

Header File

Source File

Development Verification Process

In this section, we present:

the setup of verification tests,
the automatic generation of a verification report via the genererCourbes tool,
the non-regression verification.

Setting Up Verification Tests

Setting up the verification tests involves creating:

a directory for each verification test:

cd convection_diffusion

mkdir -p share/Validation/Rapports_automatiques/Cas-tests/src/cas-test1

mkdir -p share/Validation/Rapports_automatiques/Cas-tests/src/cas-test2

Cas-tests is the directory containing the verification tests. cas-test1 and cas-test2 contain the two verification cases.
a PRM file in the directory convection_diffusion/share/Validation/Rapports_automatiques/Cas-tests/src, used to automatically generate a verification report (cf. section Verification Report).
an input data file for each verification case.

Generating the Verification Report

Generation consists in running the command make validation from the convection_diffusion directory. In that same directory, this command will produce the verification report validation.pdf. This report is presented in the Verification Report section below.

Non-Regression Verification

To use the previously set up tests as non-regression tests, it suffices to:

create a directory to hold the reference results inside the convection_diffusion directory:

cd convection_diffusion

mkdir -p tests/Reference/Validation
run the tests and check for non-regression by executing the command make check_optim from the convection_diffusion directory. The figure below shows that the sequential and parallel results exhibit no regression.

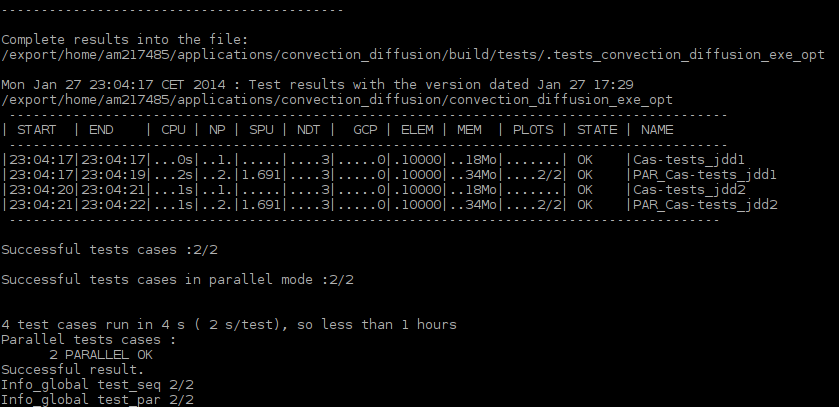

Non-regression test results

Verification Report

Note: The verification report body is not included in this page. Run make validation from the convection_diffusion directory to generate validation.pdf.

Conclusion

In this tutorial, we have described, through the resolution of a convection-diffusion equation, the following aspects:

the development environment of the TRUST software, by building a new BALTIK application,
the specification and development workflow. This workflow requires technical choices, such as associating the convection velocity with a constituent rather than with the equation or problem. These choices are neither unique nor necessarily better than alternatives. The main purpose of this tutorial is to present a workflow accompanied by its own technical choices, while providing some recommendations and methodologies to follow during the specification phase.
the setup of non-regression tests and the automatic generation of a development verification report using tools provided by the TRUST software.
