TRUST is a platform which allows parallel calculations following some basic rules:

Single Program, Multiple Data model: tasks are split up and run simultaneously on multiple processors with different input in order to obtain results faster.
Messages are exchanged by Message Passing Interface.
From a PC to a massively parallel computer, with shared or distributed memory.

Basic Notions

To make a parallel calculation, you have to partition your domain. Each sub-domain will be treated by one processor. In order to have good performance, ensure that:

sub-domains have almost the same number of cells.
joint lengths (boundaries between sub-domains) are minimal.

Performances

You have to choose a number of processors which is in agreement with the number of cells. You can evaluate your speed-up (sequential time / parallel time, which must be as close as possible to the number of processors) or efficiency (= 1 / SpeedUp) to choose the right number of processors.

From our experience, for good performance with TRUST, each processor should treat between 20000 and 30000 cells.

Partitioning

To run a parallel calculation, you must:

make some modifications to your my_data_file.data file,
do two runs:
- the first one, to partition and create your 'n' sub-domains (two methods will be presented).
- the second one, to read your 'n' sub-domains and run the calculation on 'n' processors.

The different blocks

Different blocks appear in the data file.

Modifications on the mesh block

First you may add the tags # BEGIN MESH # and # END MESH # before and after your mesh block, for example:

# BEGIN MESH #

Read_file my_mesh.geo ;

[Trianguler_h my_domain ]

# END MESH #
Adding a partitioning block

You may now add the partitioning block which contains the cutting instruction, after your mesh block:

# BEGIN PARTITION

Partition my_domain

{

Partition_tool partitioner_name { option1 option2 ... }

Larg_joint 2

zones_name DOM

...

}

End

END PARTITION #

Where partitioner_name is the name of the chosen partitioner, one of METIS, Tranche, Sous_Zones, Partition or Fichier_Decoupage (see the TRUST available partitioning tools section below).

The Larg_joint keyword allows specifying the overlapping width value.

Note the End before the last line. It will be useful for the cutting step.

This block will partition your domain into the specified number of sub-domains during the partitioning run.
Adding a block to read the sub-domains

Finally, you will add a block which will be activated during the parallel calculation and will allow reading the sub-domains:

# BEGIN SCATTER

Scatter DOM .Zones my_domain

END SCATTER #

Partitioning: "Assisted" method

Here we will use the trust -partition datafile command line to make the partitioning step. We consider that you have correctly added the # tags in your my_data_file.data file with the partitioning block and cutting block.

Be careful with the hashtags #, they are interpreted by the script!

To automatically perform the partitioning step and obtain the parallel data file, you have to run:

trust -partition my_data_file [parts_number]

Note: Here parts_number is the number of sub-domains created, but it is also the number of processors which will be used.

This command creates:

a SEQ_my_data_file.data file which is a backup of my_data_file.data, the sequential data file.
a DEC_my_data_file.data file which is the first data file to be run to make the partitioning.

It is immediately run by the trust -partition datafile command line to create a partition, located in the DOM_000n.Zones files.

Note
The code stops reading this file at the End keyword just before the **# END PARTITION #** block.
a PAR_my_data_file.data file which is the data file for the parallel calculation. It reads the DOM_000n.Zones files through the "Scatter" instruction.

Note that the meshing and cutting of the mesh are commented out here.

To visualize your sub-domains, you can run:

trust -mesh PAR_my_data_file

For more information, you can do the exercises in the TRUST Tutorial.

TRUST available partitioning tools

In TRUST, you can make partitioning with:

the external partitioning library METIS (open source).

It is a general algorithm that will generate a partition of the domain:

Partition_tool Metis

{

nb_parts N

[use_weights]

[pmetis | kmetis]

[nb_essais N]

}
the internal TRUST partitioning tool Tranche, which makes parts by cutting the domain along the x, y and/or z directions.

partition_tool Tranche

{

tranches nx ny [nz]

}

Figure 3 is an example of what you can obtain by cutting a 1m × 1m square divided into three parts using METIS, and Figure 4 shows the same square divided into three slices along the x direction with Tranche.

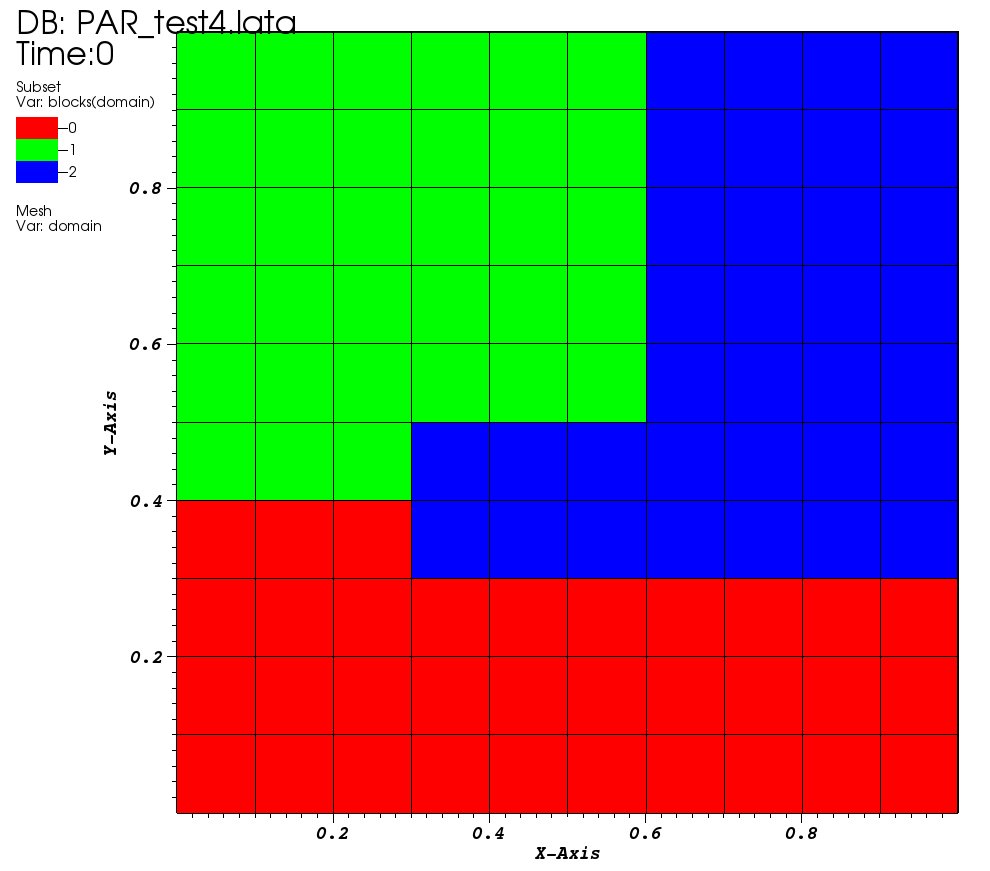

Figure 3: METIS partition.

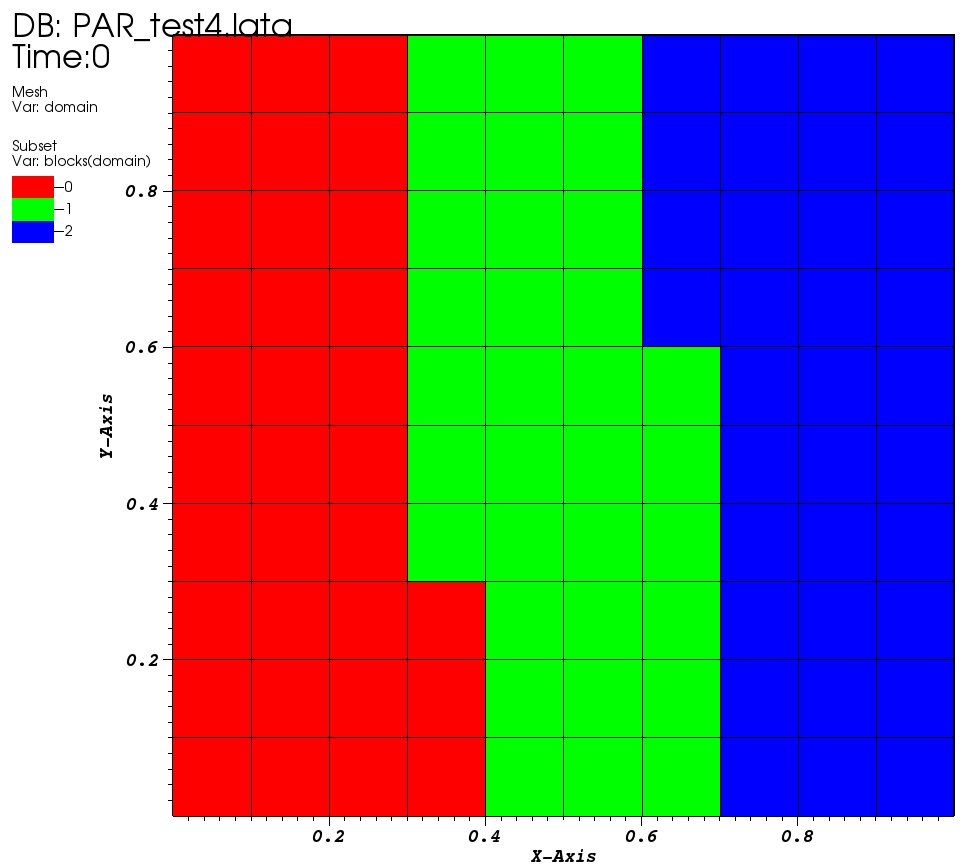

Figure 4: Tranche partition.

Overlapping width value

To make the partitioning, you will have to specify the overlapping width value. This value corresponds to the thickness of the virtual ghost zone (data known by one processor though not owned by it), i.e. the number of vertices or elements on the remote sub-domain known by the local sub-domain (see Figure 5).

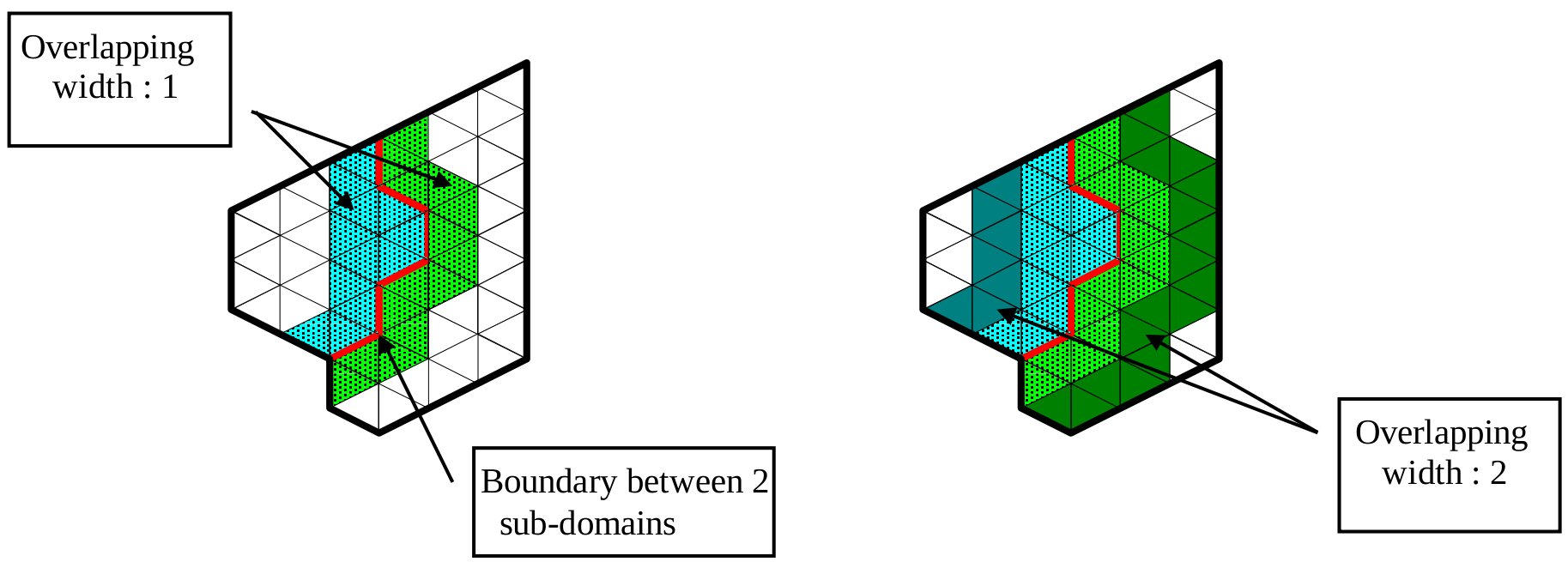

Figure 5: Overlapping width.

This value depends on the space discretization scheme order:

1 if 1st or 2nd order.
2 if 3rd or 4th order.

Note that in general, you will use 2.

Running a Parallel Calculation

On a PC

To launch the calculation, run the usual command completed by the number of processors needed:

trust my_parallel_data_file procs_number

where procs_number is the number of processors used, which is the same as the number of sub-domains.

You can see the TRUST & TrioCFD user slides in the "Parallel calculation" section for more information. Also work through the exercises in the TRUST Tutorial.

On a cluster

You must submit your job to a queue system. For this, you must have a submission file. TRUST can create a submission file for you on clusters where the support team has done installations.

To create this file, run:

trust -create_sub_file my_parallel_data_file

You obtain a file named sub_file; you can open it and verify/change values (for example the job name, the executable name, ...).

Then submit your calculation with:

sbatch sub_file

or

ccc_msub sub_file

depending on the queue system of the cluster.

You can see the TRUST & TrioCFD user slides in the "Parallel calculation" section for more information.

Visualization

To visualize your probes, you can use the CurvePlot tool with the command line:

trust -evol my_parallel_data_file

or use Gnuplot or any software which reads values in columns in a file.

There are three ways to visualize your parallel results with VisIt:

HPCDrive or Nice DCV on CCRT/TGCC clusters: opens a remote graphics session on dedicated nodes with more memory (on TGCC cluster: HPCDrive).
Local mode: copy your results from the cluster to your local computer and open them with a local parallel version of VisIt:

visit -np 4 &

You can have a look at the TRUST & TrioCFD user slides in the "Parallel calculation description" section.

Useful Information

Modify the mesh

If you want to modify your mesh, you have two possibilities:

Modify the my_data_file.data file and run:

trust -partition my_data_file [parts_number]

Be careful: it will erase the SEQ_my_data_file.data, DEC_my_data_file.data and PAR_my_data_file.data files and create new ones.

Then it will run the new DEC_my_data_file.data file which gives your new DOM_000n.Zones files.
Modify the meshing part of file DEC_my_data_file.data and run it with:

trust DEC_my_data_file

Then run the parallel calculation normally on the new DOM_000n.Zones files:

trust PAR_my_data_file procs_number

Modify calculation parameters

If you want to modify the calculation parameters, you can modify:

The file my_data_file.data and run:

trust -partition data_file_name [parts_number]

But it will erase the SEQ_my_data_file.data, DEC_my_data_file.data and PAR_my_data_file.data files and create new ones.

Then it will run the new DEC_my_data_file.data file which gives your new DOM_000n.Zones files.

Note
In that case, you don't need to re-create the mesh so you can use the second option below.
Modify the PAR_my_data_file.data file without running the trust -partition datafile command line.

Then run the PAR_my_data_file.data file with:

trust PAR_my_data_file procs_number

Note: If after some time you want to reopen an old case and understand what you did in it without any ambiguity, you may create two files by hand:

one BuildMeshes.data file only for the mesh and the cutting of the mesh.
one calculation.data file for the parallel calculation.

You will run them like:

trust BuildMeshes

trust calculation processors_number
