raffiner_isotrope

Synonyms: raffiner_simplexes

Inherits from: interprete

For VDF and VEF discretizations, allows to cut triangles/quadrangles or tetrahedral/hexaedras elements respectively in 4 or 8 new ones by defining new summits located at the middle of edges (and center of faces and elements for quadrangles and hexaedra). Such a cut preserves the shape of original elements (isotropic). For 2D elements: raffinerisotrirect

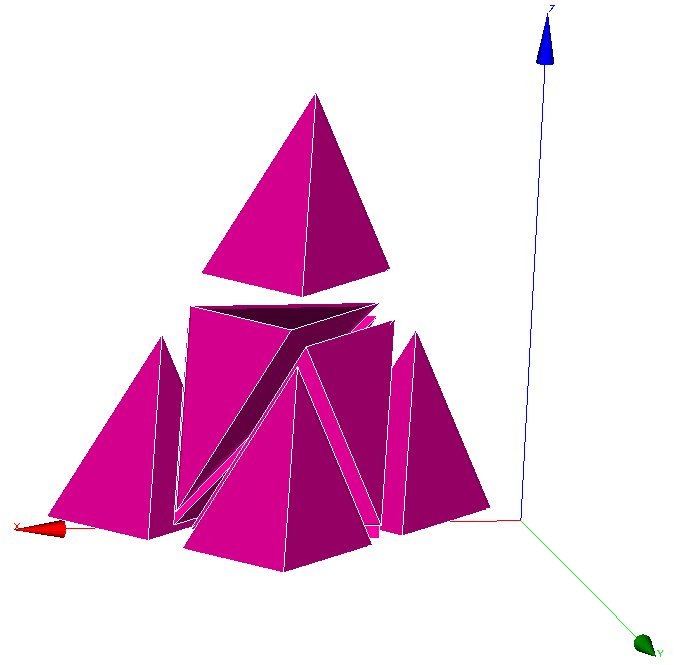

For 3D elements: raffinerisotetra

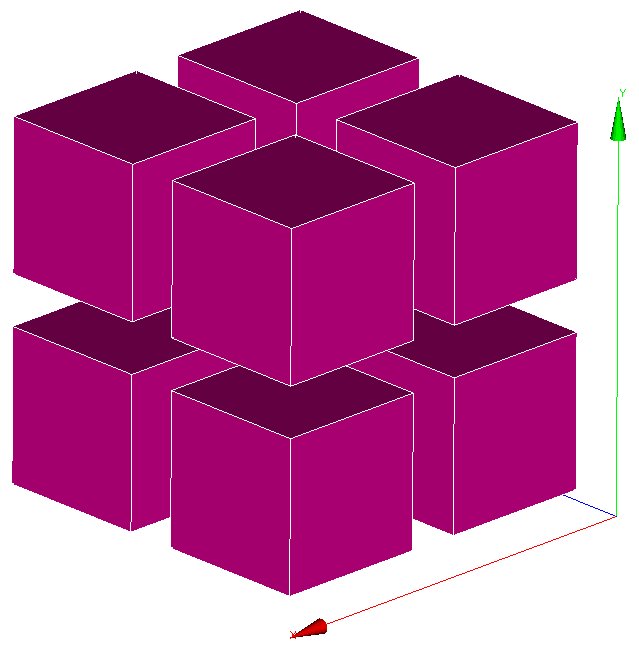

raffinerisohexa

Parameters:

domain_name (type: string) Name of domain.

raffiner_simplexes_64

Inherits from: raffiner_isotrope

Same as Raffiner_isotrope and Raffiner_simplexes for big (64b) domain

Parameters:

domain_name (type: string) Name of domain.
