This page describes the architectural foundations of TRUST's parallelism: the programming model, the distributed mesh data structures, the distributed-array machinery, and the partitioning toolkit. It complements the user-facing Parallel Simulations guide — which covers how to run a parallel calculation — by explaining how the kernel is wired internally, for anyone touching the C++ sources.

Note: This page is adapted from a 2006 design document by Benoît Mathieu (Trio_U 1.5.1 beta). The architectural concepts described here are stable foundations that survived the 2015 split into TRUST and TrioCFD and are still active today, but several class names were renamed as part of the long migration from Trio_U → TRUST. Notable shifts (already incorporated into this page): Zone → Domaine, Joint_Item → Joint_Items, enum Type_Item → enum class JOINT_ITEM. Distributed arrays are now the TRUSTTab family (IntTab, DoubleTab, and their _t templated forms IntTab_t/DoubleTab_t for 32/64-bit integer support). When a specific identifier matters in your work, grep in $TRUST_ROOT/src/Kernel/ to confirm the current spelling.

Programming model: SPMD with fine-grained MPMD blocks

TRUST runs in SPMD mode (Single Program, Multiple Data): every processor executes the same code path, and at any instant they sit at the same point in the code. All processors therefore solve the same system of equations simultaneously (same equations, same discretization, same time scheme). Whenever processors need to exchange data, they do so at synchronisation points — collective operations baked into the code.

SPMD contrasts with MPMD (Multiple Program, Multiple Data), where each processor runs a different code and inter-processor communications go through rendez-vous points — less frequent but harder to organise. For example, a hypothetical MPMD TRUST could have one processor solve Navier–Stokes while another solves a thermal problem.

In practice, TRUST is not strictly SPMD: the data each processor operates on is not always the same size (one processor's sub-domain has a different number of elements than another's), and some non-linear models (turbulence, convection operators, ...) have conditional branches whose outcome depends on local values and can therefore differ across processors.

TRUST resolves this with fine-grained MPMD blocks — short sections (loops over geometric items whose count varies per processor, loops over matrix entries, ...) that cannot contain inter-processor communications. These blocks are themselves organised in an SPMD pattern: every processor enters the same MPMD block at the same point in the code.

Developer convention

The TRUST kernel's high-level algorithms (operators, matrix solvers, framework methods) are coded SPMD by default. When you write such code:

if you call a service inside a conditional (if, while, for), the conditional must produce the same outcome on every processor — same branch taken, same number of iterations. A divergence here will deadlock the next synchronisation point.
a service is implicitly SPMD as soon as it contains synchronisation points. This property is not currently documented in the code — it's on the developer to verify by reading the implementation.
a block of code whose conditional branches can legitimately differ per processor must be marked as MPMD (no synchronisation points inside it).

Process groups (mostly unused today)

TRUST theoretically supports a higher-level MPMD layer via the Process class and the notion of groups (sets of processors executing SPMD code together). A group can be the audience of an mpsum call, for instance, so the sum spans only that group's processors. The mechanism is plumbed but has only ever been used in prototype form (an AMR/dynamic-load-balancing experiment). Routinely using it would require generalising every distributed object to carry a reference to its owning group.

Distributed mesh and geometric items

The computational domain is partitioned into N sub-domains: every element belongs to exactly one sub-domain. Each processor owns one sub-domain and knows about the geometric items attached to it (vertices, faces, edges, boundary faces). Those are the sub-domain's real items.

Some real items are shared with a neighbouring sub-domain — a vertex on the boundary between two sub-domains is real on both. Such shared items are called common items ("items communs"). The boundary between two sub-domains — the set of common items plus the metadata describing the link — is called a joint.

For numerical schemes computed on items adjacent to joints, a processor needs to access the values on items just across the joint, on the neighbouring sub-domain. Those extra items are virtual items ("items virtuels"). The number of layers of virtual items kept is the joint thickness ("épaisseur de joint"):

thickness 1 covers 1st- and 2nd-order space discretizations;
thickness 2 covers 3rd- and 4th-order schemes.

If the thickness is N, a sub-domain knows every element whose neighbours-of-neighbours-of-... (N-1 hops) include one of its real elements, plus the attached vertices/faces/edges. Two elements are "neighbours" if they share at least one common vertex.

Two conventions worth knowing when reading the code:

common items are also real items;
boundary faces ("faces de bord") are also faces.

Distributed arrays

A distributed array ("tableau distribué") holds values indexed by geometric items. For values associated with virtual items, the array stores a copy obtained by copying the corresponding real value from the neighbour processor's sub-domain.

The conventional layout is:

real values first, in the order in which the geometric items themselves are defined (entry n of the array is the temperature of element n in the local sub-domain, say);
virtual values last, ordered first by the index of the sub-domain that owns the corresponding real item, then within each sub-domain by the order defined by the distant items table (the list of its real items that a neighbour is mailing out).

Virtual space exchange

The standard pattern: every processor computes the values on its real items, then performs an "échange espace virtuel" (virtual space exchange) where it sends those real values to the neighbours that need them as virtual values, and receives the values its own virtual items expect. After this round-trip, the array's virtual section is up to date.

A few invariants:

a real item can be sent to several processors but is always received from exactly one;
a single item can be both distant (sent to others) and common (shared with others as a real);
for common items specifically, every co-owner could in principle recompute the same value. In exact arithmetic, with identical inputs, this would converge. In practice rounding errors break that — so TRUST performs an additional "échange des items communs" in which the lowest-rank sub-domain that owns the item imposes its value on every other owner. This keeps the parallel solution bit-identical across processors.

Constructing distributed arrays

The virtual-space layout of a distributed array is described by an MD_Vector (metadata vector) — built once per geometric type for a domain and reused by every array indexed by items of that type. The Scatter class exposes the construction sequence:

Scatter::calculer_espace_distant_* (one variant per geometric type — _elements, _sommets, _faces, _aretes) computes, for this sub-domain, the list of real items it must export as virtuals to each neighbour;
Scatter::construire_md_vector(domaine, nb_items_reels, JOINT_ITEM, md) packages the per-neighbour common + distant lists plus the virtual count into an MD_Vector;
the array is then created with that MD_Vector attached — every subsequent echange_espace_virtuel() call uses it to drive the MPI exchange.

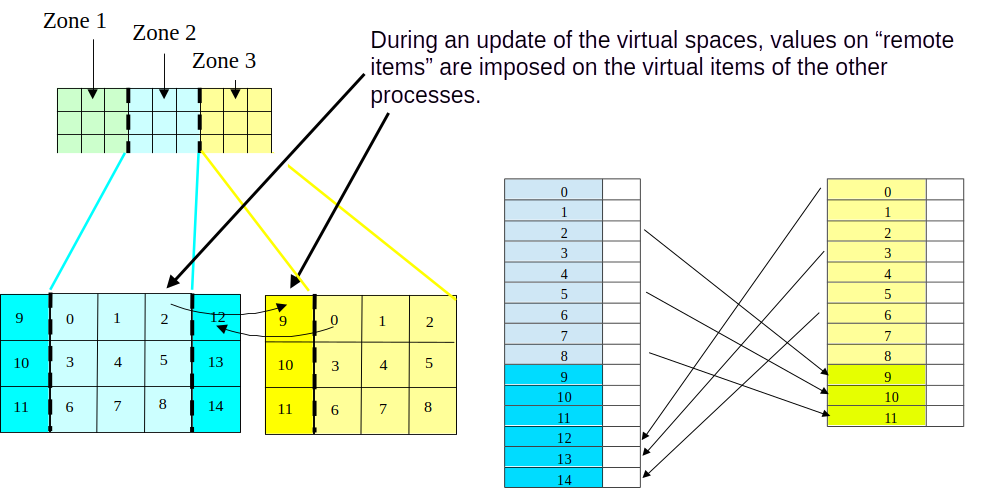

Example of array parallel structure

Arrays of geometric indices: index translation

Many distributed arrays hold not numerical values but indices into other geometric arrays — e.g. for each element, the local indices of its vertices in the local-sub-domain vertex table. Naïvely running the virtual-space exchange on such an array would copy raw indices from another processor, which would point at the wrong vertices on the receiving side.

Scatter::construire_espace_virtuel_traduction(md_indice, md_valeur, tableau) handles this: it exchanges the raw indices via the md_indice layout, then translates them into the local numbering defined by md_valeur. The element-vertex table, the face-vertex table, the element-faces and face-neighbours tables all rely on this mechanism.

The "Joint" and "Joint_Items" data structures

Each sub-domain stores its joints in a list of Joint objects, one per neighbouring sub-domain. Each Joint then carries one Joint_Items instance per geometric type, indexed by the enum class JOINT_ITEM { SOMMET, ELEMENT, FACE, ARETE, FACE_FRONT } declared in Joint.h. A Joint_Items exposes:

Accessor	What it returns
items_distants()	Local indices of the real items this sub-domain exports as virtuals to the neighbour (ArrOfInt_t).
items_communs()	Local indices of the items shared (real on both sides) with the neighbour (ArrOfInt_t).
renum_items_communs()	Two-column index map (IntTab_t): column 0 — local index; column 1 — corresponding index on the neighbour processor.

For initialisation, the matching set_items_distants(), set_items_communs() and set_renum_items_communs() setters return mutable references. All accessors come in templated _32_64 flavours — the _t typedefs (ArrOfInt_t, IntTab_t) resolve to the right integer width at compile time.

Distributed geometry specifications

For each canonical mesh array, here's the convention:

Vertex coordinates — Domaine::les_sommets() returns the DoubleTab_t& of 2D/3D vertex coordinates; coord_sommets() is the const accessor. Standard distributed array with common items
- virtual space, populated by the standard virtual-space exchange.
Element table — Domaine::les_elems() returns an IntTab_t& giving, for each cell, the local indices of its vertices. Standard distributed array with virtual space but no common items; virtual contents obtained via the index-translation exchange.
Face-vertex table — Domaine_VF::face_sommets() returns an IntTab& giving, per face, its local vertex indices. Vertex order within each face is determined by Elem_geom_base::get_tab_faces_sommets_locaux(). Standard distributed array with virtual space + common items; virtual contents obtained via index translation.
Element-face table — Domaine_VF::elem_faces() returns an IntTab& giving, per cell, its face indices. Standard distributed array indexed by elements with virtual space.
Face neighbours table — Domaine_VF::face_voisins() returns an IntTab& giving, per face, the indices of its neighbouring elements (-1 when the face has only one neighbour). Standard distributed array indexed by faces with virtual space + common items. Discretisation-specific conventions apply once exchanged:
- VDF: face_voisins(i,0) is the element with the smaller coordinate in the face's normal direction; face_voisins(i,1) is the larger. For boundary faces and virtual faces, one of the two neighbours is -1; the order of voisin0 / voisin1 is identical on every processor that knows the face.
- VEF: no ordering constraint between face_voisins(i,0) and face_voisins(i,1) for faces with two neighbours. For one-neighbour faces, the known neighbour is in face_voisins(i,0) and the other slot is -1. ⚠️ the order of neighbours is not guaranteed identical across processors sharing the same face.

The partitioning toolkit

The mesh cutter is organised around three classes:

Decouper — an Interprete that reads the partitioner's parameters from the data file and drives the operations (partition the domain, write the .Zones files, write the partitioning file, ...).
Partitionneur_base — abstract base of the partitioner hierarchy. Concrete subclasses implement the individual algorithms (Metis, Tranche, ...).
DomaineCutter — given a complete domain plus a partition map, builds the per-sub-domain data: real vertices, vertex/element tables with local indices, sub-domain borders, joint vertices, joint faces. (It also computes the distant items for now, though that step is optional and can be deferred to Scatter — useful in particular when reading a parallel MED file that already contains the partition but not the distant items.)

Constraints on every partitioner

Partitionneur_base::construire_partition() must produce a partition that respects periodic boundaries. Two invariants:

If a real periodic face is on a processor, the opposite periodic face must also be on that processor — i.e. the element across the periodic boundary lands in the same sub-domain.
The renum_som_perio table must point at the same real vertex on every processor. If a vertex is multi-periodic, every processor that owns it must also own every other multi-periodic vertex associated with it. A partition that splits a multi-periodic vertex group across processors is rejected.

Similarly, a processor must not own an isolated periodic vertex: if a sub-domain contains a vertex adjacent to a periodic face, it must own at least one of the adjacent periodic faces, so the periodic vertex can be discovered by walking the faces.

To enforce these, Partitionneur_base exposes corriger_bords_avec_graphe() and corriger_bords_avec_liste(), which post-process a candidate partition until the invariants hold:

if a sub-domain has a periodic face, it also has the corresponding opposite face;
no isolated periodic vertex on any sub-domain;
multi-periodic vertex groups stay together.

What "DomaineCutter" does per sub-domain

For each sub-domain it builds:

the set of real vertices (every vertex of every element assigned to the sub-domain);
the vertex table and element table with local indices;
the sub-domain's borders;
the joint vertices (vertices shared with each neighbouring sub-domain), ordered so they share the same order on the neighbouring side;
the joint faces.

The distant items are also computed here in the current code path, but that operation is optional — it can be deferred to Scatter at load time (notably for MED-format partitions that don't ship the distant-element lists).
